Drum filling machines

200-litre drums and IBCs, with flowmeter-grade accuracy.

In short

BSC's 200-litre drum filling machine fills drums and IBCs up to 1000 litres with a bottom-up filling nozzle and ± 0.03 % accuracy. It can dose by mass flowmeter or by weight, in manual and semi-automatic versions, and supports an explosion-proof (Ex) configuration for filling drums with solvents, acids and flammable products.

LP Series

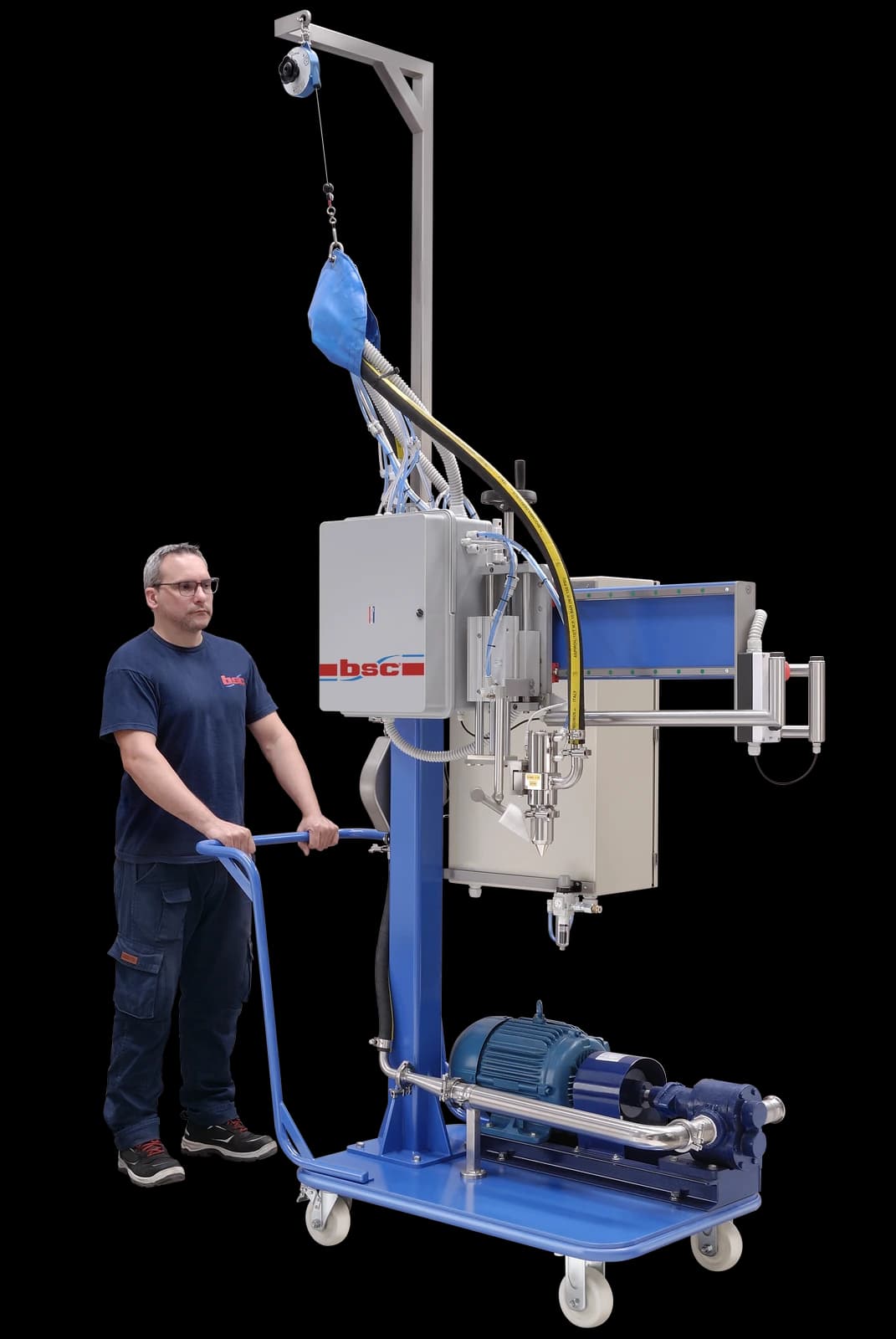

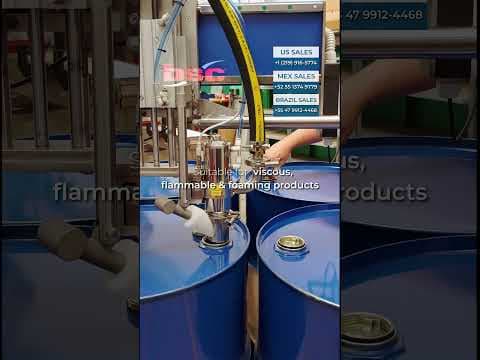

Manual Line filler

Output of up to 5,000 litres/hour in 200-litre drums.
Filling accuracy of ± 0.03 % at 200 and at 1000 litres.
Manual container feeding, by forklift or pallet truck.
The filling nozzle design requires no mechanical parts change when switching container size.
Compact construction with fewer mechanical parts simplifies maintenance.

LP Series

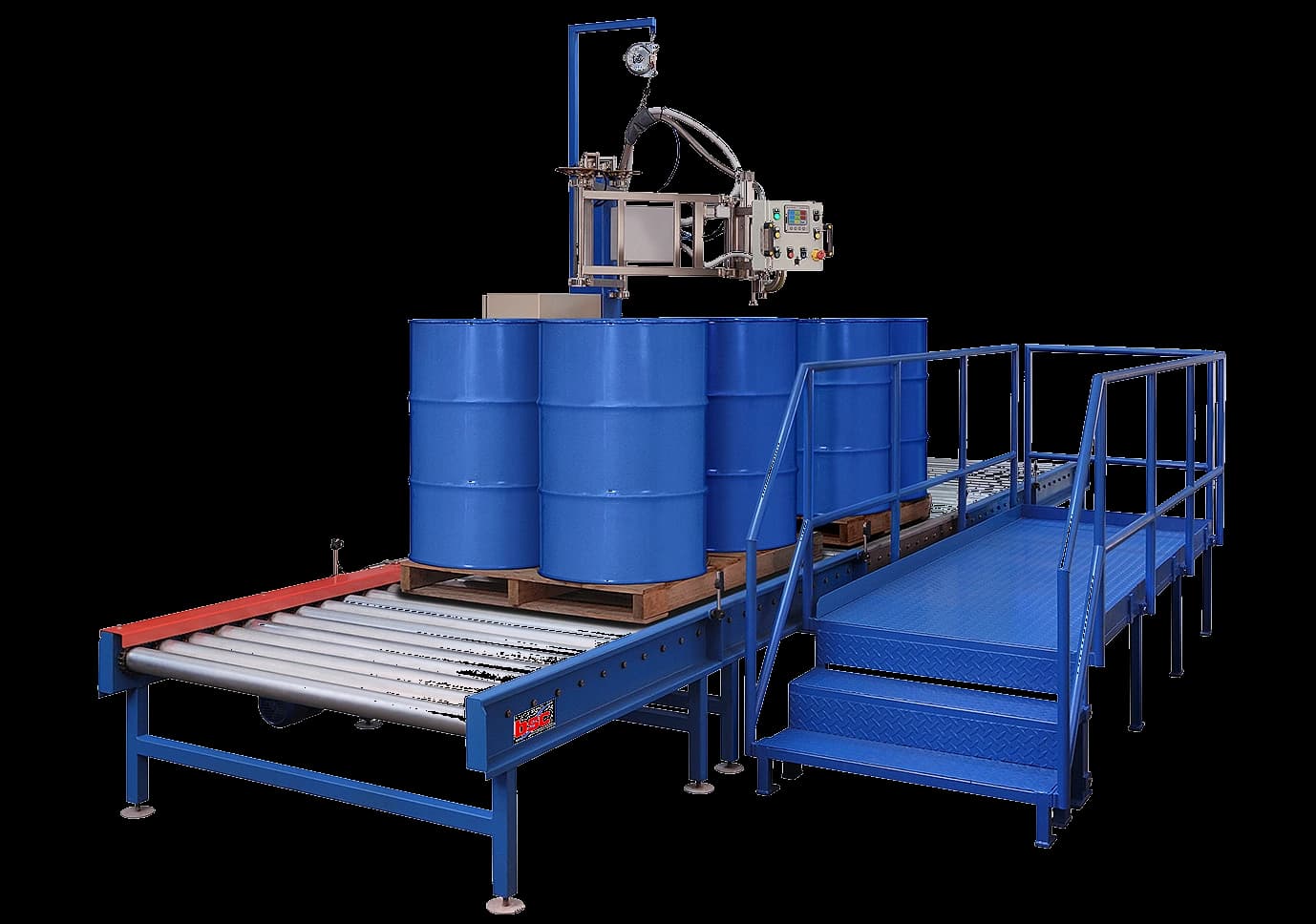

Semi-automatic Line filler

Output of up to 6,000 litres/hour in 200-litre drums.
Filling accuracy of ± 0.03 % at 200 and at 1000 litres.
Automatic container feeding, by motorised roller conveyor.
Provides an infeed and outfeed buffer.
The filling nozzle design requires no mechanical parts change when switching container size.

Filling range and tolerance

Filling range	Tolerance
200-litre drums and 1000-litre IBCs	± 0.03 %

Suitable for

Foaming, viscous, corrosive, abrasive, flammable and flowable products, including liquids with solid particles in suspension.

Example products

Mineral oils, paints, isocyanates and solvents, glues and adhesives, waxes, fertilizers, herbicides, seed treatment products, automotive products, detergents and bleach.

Container formats

Plastic or steel drums and IBCs, from 200 litres up to 1000 litres.

Variants

L-Mag — volumetric dosing flowmeter (electromagnetic).
L-Mass — mass dosing flowmeter (Coriolis effect).

Technical specifications

Heavy-duty galvanised steel frame with epoxy-painted parts.
Two-axis movement with pneumatic interlock for positioning the filling nozzle.
Product-contact parts selected for each application: AISI 316 stainless steel, PVC, titanium, EPDM, Viton or PTFE seals.
Operator panel for PLC programming and machine control.
Pneumatic bottom-up filling nozzle.
Electrical and pneumatic components from leading brands.

Benefits

Product temperature range from -10 °C to 125 °C.
Perfect adaptation to every type of liquid.
Maximum accuracy and repeatability of the dispensed volumes.
Volume adjustment from the touch screen, with unlimited stored recipes.
Great versatility in format changeovers.
Fast format changeovers, with no tools required.
Quick adjustment of container dimensions and dispensed volumes.
Programmable cleaning speed per product: better cleaning quality in less time.
Low consumption of washing liquid.
Clean-in-place (CIP) and sterilise-in-place (SIP) as standard: 150 °C for up to 60 minutes.
Simple, linear filling circuit with no moving mechanical parts.

Industria 4.0

Real-time reporting and OEE monitoring
