Chemical industry
BSC manufactures chemical filling machines, including solvent fillers and the filling of acids and corrosives, with special materials (AISI 316, PVC, titanium) and explosion-proof (Ex) configuration. It packages paints, isocyanates, adhesives, oils, detergents and bleach, from small containers to drums and IBCs, and lets you test your product on the testing bench before buying.
Paints, glues & solvents
Detergents
Lubricants
Petrochemicals
Corrosives & acids
Viscous & foamingDigital accuracy, versatility and more
We design and manufacture filling machines with digital flowmeters and an ultra-clean system. Their defining feature is high filling accuracy combined with versatility across containers and products: a single machine can fill several formats and handle very different liquids, with the shortest possible changeover and minimal washing requirements.
Electronic flowmeters remove the need for a storage tank: the product travels from a pump to the filling valve through closed piping that prevents oxidation.
The effectiveness of the system cuts product changeover and machine cleaning down to a few minutes. The hydraulic circuit does not need to be dismantled and the washing operation is controlled automatically.
Our filling valves are hydraulically designed with dosing nozzles that produce a turbulence-free jet and minimise foaming. The ultra-clean system fills accurately without the valve touching the container, eliminating any possibility of contamination. Its hydraulic design without dead zones also prevents bacterial growth.
Typical challenges
- Corrosive, abrasive or flammable products
- Special materials for the parts in contact
- Strict compliance with safety regulations
- Diverse volumes: from small containers to drums and IBCs
How we solve it
- Explosion-proof (Ex) configurations
- Stainless steel and special materials
- Linear and drum fillers
- Testing bench with the customer’s own product
Typical applications
- Paints, varnishes and coatings
- Isocyanates, solvents and thinners
- Glues and adhesives
- Mineral oils and lubricants
- Detergents, bleach and cleaning products
- Corrosive and flammable products with Ex certification
Frequently asked questions

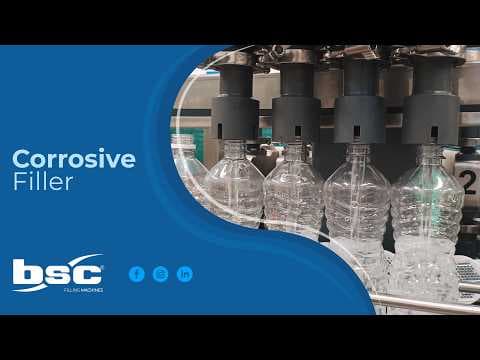

Does BSC manufacture fillers for corrosive liquids?+
Yes. The LA MAGC Series is a filler purpose-built for corrosive liquids, measured with an Endress+Hauser electromagnetic flowmeter.
What materials ensure chemical resistance?+
Product-contact parts in AISI 316L stainless steel and an AISI 304 frame. Depending on the product, PVC, titanium and EPDM, Viton or PTFE seals are also used to ensure compatibility.
How is a machine for corrosive products cleaned?+
With a self-draining CIP/SIP system and an automatic wash programme, with no need to dismantle any part of the machine.
Can it work in flammable or hazardous atmospheres?+
Yes, with the optional ATEX version, designed for acids, corrosives and flammables in the agrochemical and chemical industries.
Which corrosive products can it package?+
Acids, agrochemicals and corrosive chemicals, including abrasive products and liquids with particles in suspension.
